fiber optic color code abbreviation
Erika Violet Aqua optional OM5 850 nm laser-optimized 50125 μm multimode fiber. The optical fiber coat colors for non-military applications are as follows.
Cable Color Code Color Coding Fiber Optic Connectors Coding
Fiber optic cables are surrounded by a type of protective tube called a jacket.
. Fiber Optic Color Code Fiber Number Color 1 Blue 2 Orange 3 Green 4 Brown 5. The first five numbers coincide with the telephone 25-pair code. An implementation of the Institute of Electrical and Electronic Engineers IEEE Ethernet standard on 62 5125-µm fiber optic cable a baseband medium of 10 Mbps.
OM1-Orange OM2-Orange OM3-Aqua OM4-Aqua Multimode-Orange OS1-Yellow OS2-Yellow PMOS-Blue. They are also color-coded for easy use and identification. Generally 12 fibers or less are a bundle of tubes and each tube will be numbered or colored according to the same fiber color code.
For the purposes of this post were only discussing non-military applications. So for optical fiber cable that contains only one type of fiber we can easily identify it by its jacket color. 100 Mbs LAN using Demand Priority Protocol originally developed by Hewlett Packard and ATT for Category 3 cable.
Therefore strand number 61 would be in the white buffer tube blue fiber. Fiber Optic Jacketing Color Code. It is important to note that different color codes may be used for the same type of cable depending on whether it is being installed in non-military or military facilities.
Unless otherwise specified the outer jacket of premises cable containing more than one fiber type shall use a printed legend to identify the quantities and types of fibers within the cable for. Most techs are familiar with orange for multimode and yellow for single-mode but as new fiber types were introduced laser-optimized 50125 fiber is the most common fiber for LANs and other premises cabling applications so aqua cables have become common. Since then we have noticed thousands of searches from people looking for fiber optic color codes for 288 and 432 count fiber both ribbon and string separated 24 fiber tubed cables.
TIAETA-598-A fibre color chart 1 Blue 13 Blue with black tracer Position Jacket color Position Jacket color 2 Orange 14 Orange with black tracer 3 Green 15 Green with black tracer 4 Brown 16 Brown with black tracer 5 Slate 17 Slate with black tracer 6 White 18 White with black tracer 7 Red 19 Red with black tracer 8 Black 20 Black with yellow tracer. TIAEIA 598-C has set some guidelines for indoor jacketing coloring. OM2 50125 μm multimode fiber.
For cables consisting of more than 12 strands the cable color code will appear repeatedly. The beige connectors indicate this is 625125 fibers. OM1 625125 μm multimode fiber.
Its important to know which is which because each serves a different purpose. B-O-G-B-S-W-R-B-Y-V-R-A is defined as Blue-Orange-Green-Brown-Slate-White-Red-Black-Yellow-Violet-Rose Aqua fiber optic cable color code very rarely. These jackets are color-coded mainly because it makes it very simple to tell the difference between different cablesNot all fiber optic cables do the same thing or contain the same number of fibers.
Optical Fiber Color Codes AEN 29 Revision 11 This Applications Note addresses Corning Optical Communications identification scheme for optical fiber cables. Per TIA 598-C using different jacket colors is allowable if the cable type is identified in the print legend. Telcordia GR-20 Generic Requirements for.
Color codes are used in. Within each buffer tube would be 12 fiber strands using the same color scheme. Each group of 12 fibers was determined by other methods.
Because it could help us identify individual fibers fiber patch cables and fiber connectors its really important to know how to differentiate a multimode patch cable from a single-mode patch cable one and the only way to do it its by the marking in the cables and the. This identification scheme follows the TIAEIA-598 Optical Fiber Cable Color Coding This standard is adopted by. Fiber optic color code abbreviations Fiber Jacket Colors.
We have added two more fiber color charts for a 288 and 432 count cables. FIBER OPTIC CENTER ACRONYMS. Currently there is a wide array of cables to choose from making it necessary to expand the color horizon.
This standard defines recommended identification scheme for. OM3 850 nm laser-optimized 50125 μm multimode fiber. In the early day it was simple.
Sometimes fiber optic cable doesnt have numeric labels. In EIATIA-598 the fiber color code defines the jacket color codes for different fiber types. Orange black or gray was used to identify multimode cables while yellow was used for single-mode ones.
OM4 850 nm laser-optimized 50125 μm multimode fiber. Fiber Optic Color Code Chart For 144 and 288 Count Cables. Continuity in an optical fiber networkTIAEIA-598 is the most widely used color coding standard in fiber optic industry.
Corning Accu Tech Introduction To Fiber Color Codes 6 49 Landscape Light Jcr 8299p 12v 15w Mr11 G4 W Cvr 30 Degree 844409002018 Ebay Home Garden In 2021 Halogen Light Bulbs Fiber Optic Christmas Tree Bulb Fiber Optic Color Code Chart For 144 And 288 Count Cables Fiber Optic Connectors Fiber Optic Fiber Optic Cable. B-O-G-B-S-W-R-B-Y-V-R-A stands for Blue-Orange-Green-Brown-Slate-White-Red-Black-Yellow-Violet-Rose Aqua fiber optic cable color code. This is an update on a post we made a few years ago for a 144 count fiber color identification chart.
To IEC 60757. A loose buffer tube cable with 144 strands would have 12 tubes colored as indicated in the image below. Fiber Patch Cable Color Code is a really important part of our telecom industry why you may ask.
For example the first tube is blue and the second is orange.

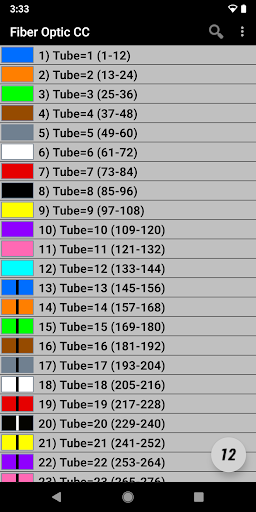

Updated Fiber Optic Color Code Mod App Download For Pc Android 2022
